B.Master BASE TWIN professional dehydrator

Biosec B.MASTER BASE TWIN

Professional drying at the highest level

The dryer for professional drying B.Master BASE TWIN is the right answer for companies wishing to enhance their products, creating new proposals for a market that is increasingly attentive to quality and authenticity and the control of the supply chain.

B.Master BASE TWIN packs all the potential of a professional drying system into small dimensions, and is ideal for small businesses that process limited quantities of product with the utmost care for the result and respect for raw materials.

Versatility and modularity make the B.Master BASE TWIN dryer a soptimum solution for every need, allowing it to adapt to different conditions of use and ensuring that the system can also be expanded at a later date.

Download Technical Data

SKU: Biosec-B.Master BASE TWIN Categories: Food dehydrator, Professional dehydrator Brand: Tauro

Description

Maximum efficiency, minimum consumption. Ideal for small and medium-scale production

The right fit for companies that want to minimise waste, revive production waste, differentiate product offerings. Standard: two electric heat sources that enable the higher temperature even at full load and two ventilation and moist air disposal units for maximum uniformity.

All dryers TWIN are equipped with a double heating module thanks to which even the most difficult products can be dried easily and safely.
EXPANDABLEadd a module at a later date and get a larger dryer in line with the new production quantities.

Medium yields maximum yields

Compact dimensions and maximum robustness thanks to the 100% Italian stainless steel structure certified for food contact.
Automated moist air disposal for maximum energy efficiency, with automatic ventilation module as standard.
B.Master is ready-to-use: no installation required.
Support and advice: our technicians are always at your disposal

Technical specifications

Number of compartments: 40 (shelf size 50 x 70 cm)
Total usable surface area: 14 m²
Maximum flow rate: Approx. 150 kg
Average daily productivity: 40/60 kg

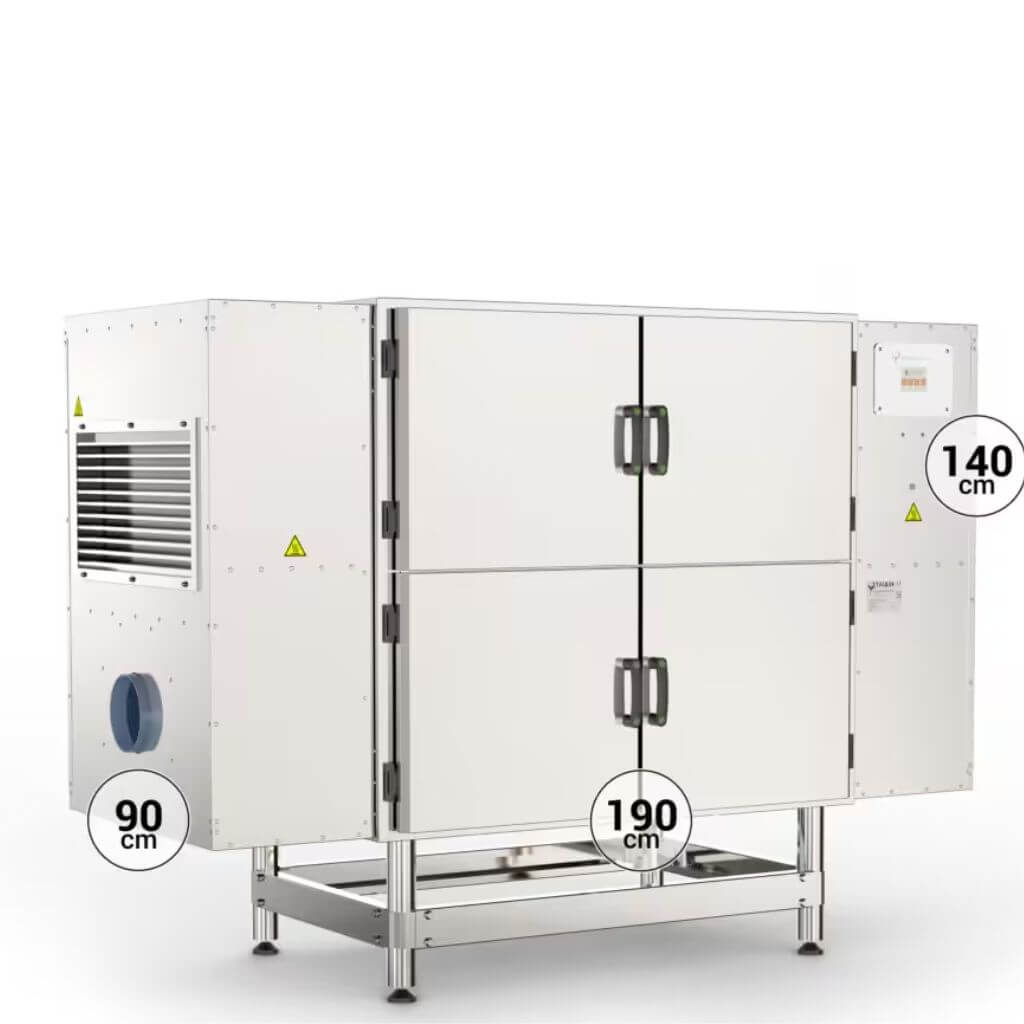

External dimensions (WxHxD): 190 x 140 x 90 cm
Empty weight: Approx. 240 kg
Thermal power: 10.2 kW
Electric fan: 400 mm
Electric fan power: 60 W.
Temperature regulation: electronics with LED screen.
Regulation of moist air evacuation: via wing flap
Power supply: 400 V – 50 Hz

Machine made of AISI 430 steel, suitable for contact with food. Baskets made of AISI 304 steel, suitable for contact with food.

Wi-Fi system as standard
Control, Management and Advanced Functions

The Wi-Fi system allows remotely control all functions of B.MASTER BASE TWIN, from any device: smartphone, tablet, pc or mac.

Start, pause or stop your drying process altogether, manage e monitor temperature and humidity, create and rename your programmes customised.

Everything from a simple dedicated application. And if there is no network where you work, no problem: B.MASTER BASE TWIN creates its own local Wi-Fi network that you can connect to.

Always connected

Thanks to the Wi-Fi system installed as standard, the dryer acquires the features of “Industry 4.0 Good”, being able to be interconnected to the company network for data exchange.

Create, Store, Track

With the Wi-Fi system, you can log the progress of drying cycles and store them in memory, so that they can also be checked afterwards for production batch tracking purposes.

Additional functions, support and assistance

The Wi-Fi system gives access to the most advanced features of B.MASTER BASE TWIN which cannot be managed from the display alone. A quick guide on what you are displaying and the possibility to create customised recipes more easily. Furthermore, for assistance or advice on specific processes or special requirements, the machine can be managed and programmed directly by Tauro technicians.

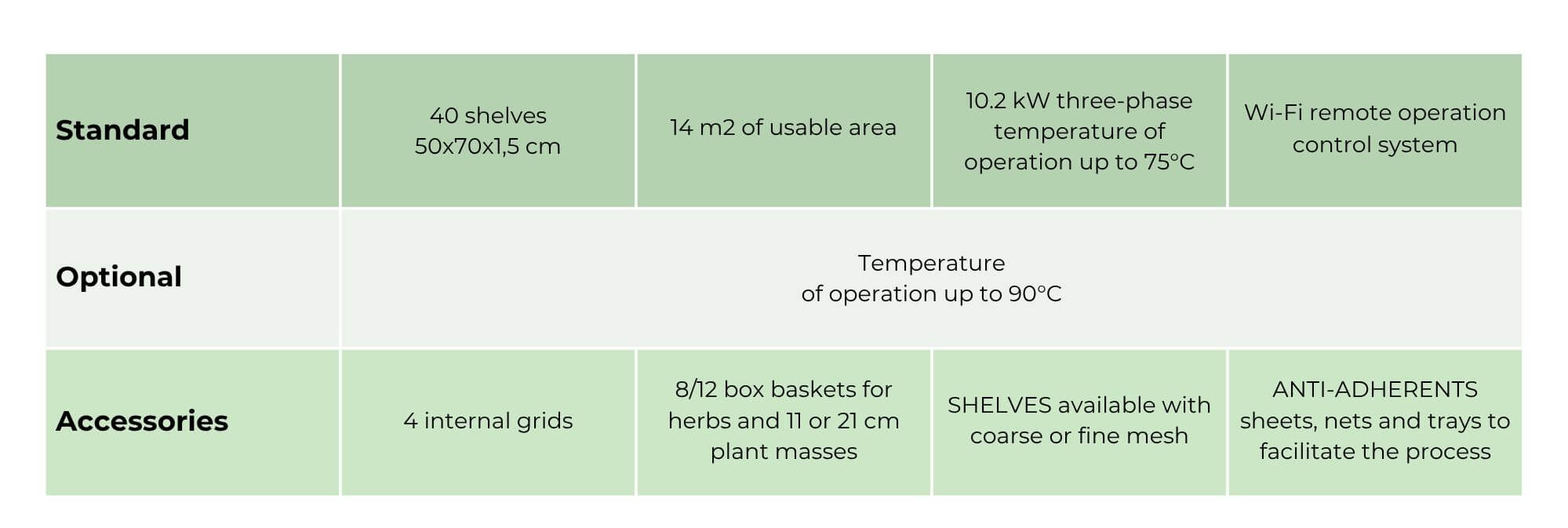

Optional equipment B.Master BASE TWIN

Optional

Loading and unloading trolley. Practicality and evolution

Entirely made of stainless steel, made with pivoting wheels and designed for quick and easy insertion of drying shelves.

Certified for food contact.

Your best ally for reducing loading and unloading times.

Made in Italy
Steel trolley AISI 430, suitable for food contact
Shelves
in steel AISI 430, suitable for food contact

Available equipment

Drying shelves

Standard configuration of B.MASTER BASE, available in coarse or fine mesh.

40 shelves made of AISI 304 stainless steel, suitable for food contact.

Dimensions 50x70x1.5 cm

Steel and plastic baskets

Designed for drying herbs, leaves, and bulky plant materials.

Box baskets made of AISI 304 stainless steel, suitable for food contact. Interchangeable with standard shelves.

12 baskets 50x70x21 cm or 24 baskets 50x70x11 cm

Box baskets made of plastic material, suitable for contact with foodstuffs. Interchangeable with standard shelves.

48 baskets 30x40x10 cm

Accessories

Non-stick holders

Drysilk.

Non-stick sheets made of PTFE (Teflon®), suitable for food contact.

Indispensable for drying watery foods, purees, leaves and flowers, sugary and thin products that tend to stick to shelves. Washable and reusable.

Non-stick holders

DrySilk Net.

Nets made of PP (Polypropylene), suitable for food contact, multi-purpose suitable for sliced products.

They provide non-stickiness and do not obstruct airflow. Two DrySilk Nets can be stacked on top of each other, doubling the capacity of the B.MASTER BASE. Washable and reusable.

Dimensions 70×50 cm
