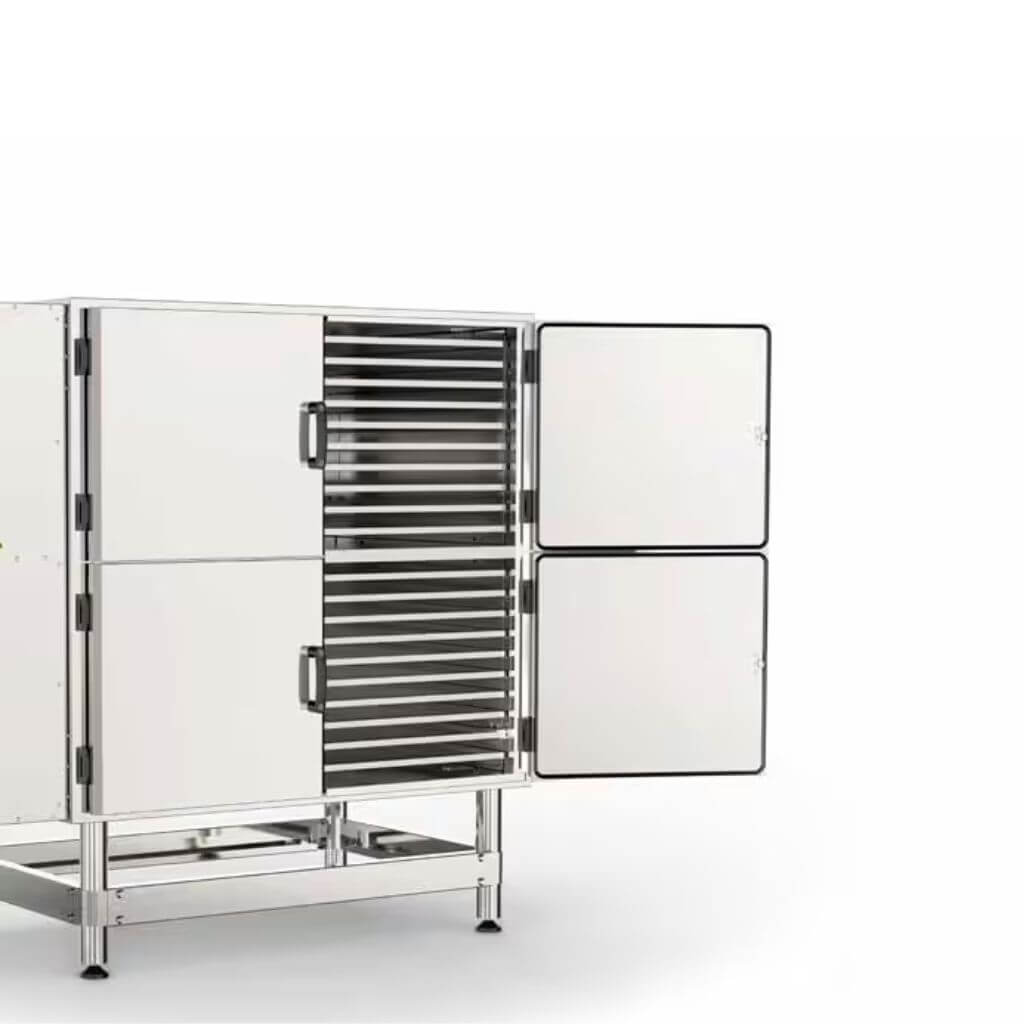

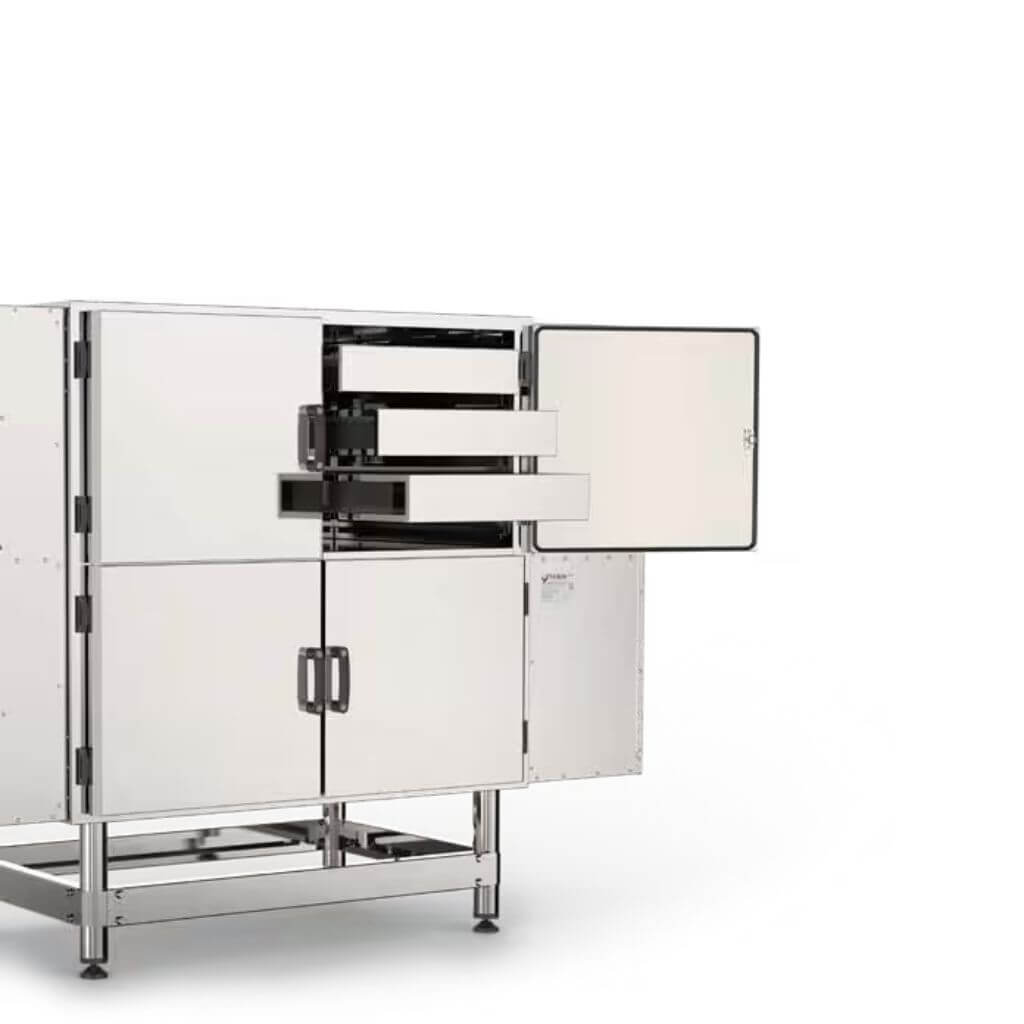

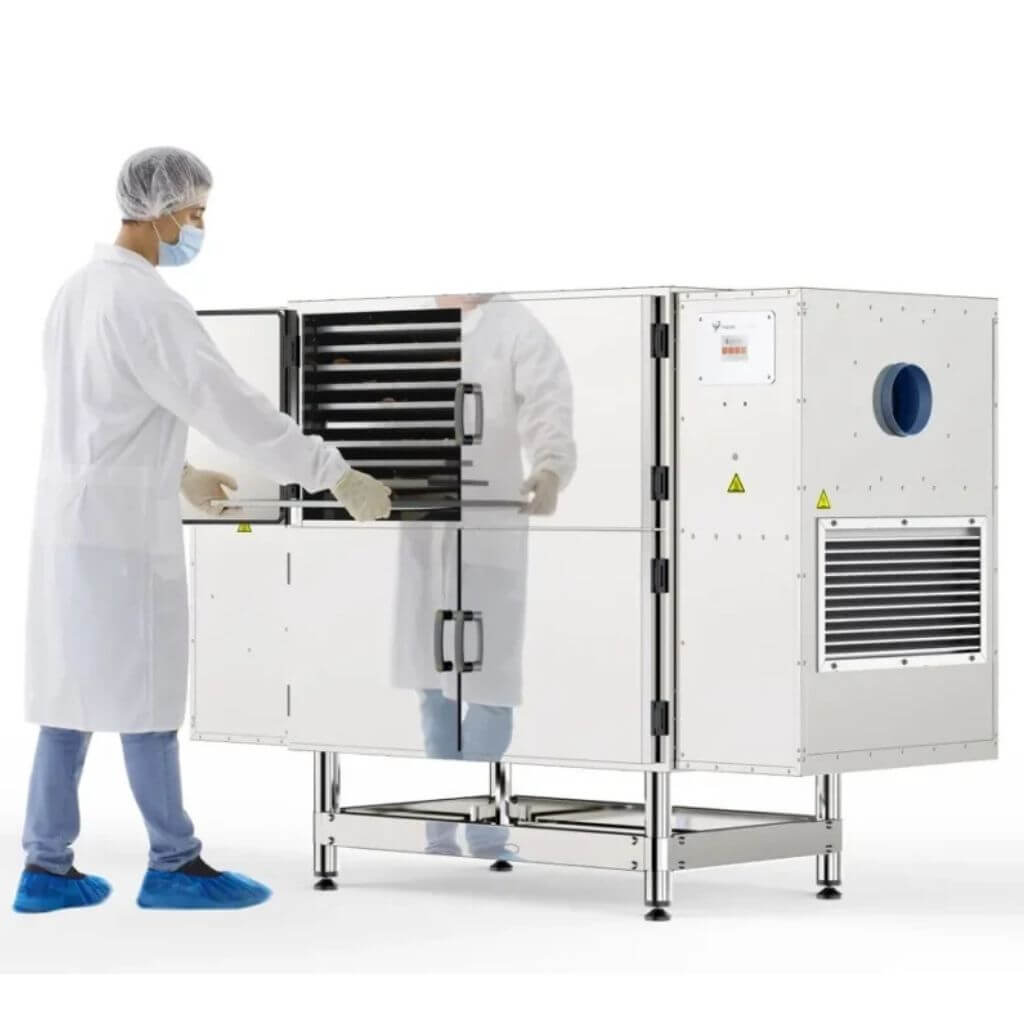

B.MASTER BASE professional food dehydrator

Biosec B.MASTER BASE

Professional drying at the highest level

The dryer for professional drying B.MASTER BASE is the right answer for companies that want to enhancing their products, creating new proposals for a market that is increasingly attentive to quality and authenticity and to the control of the supply chain.

B.MASTER BASE encompasses all potential of a professional drying plant in a small size, and is therefore the ideal choice for small or medium-sized productions.

Download Technical Data

SKU: Biosec-B.MASTER BASE Categories: Food dehydrator, Professional dehydrator Brand: Tauro

Description

Maximum efficiency, minimum consumption

Versatility and modularity make B.MASTER BASE an optimal solution for every need, allowing him to
adapt to different conditions of use.

B.MASTER BASE is equipped as standard with all the features that make TAURO dryers an established standard: all-stainless steel construction, touchscreen display, Wi-Fi connection system for remote control and management.

More quality less consumption

Compact dimensions and maximum robustness thanks to 100% Italian stainless steel construction certified for food contact
Automated moist air disposal for maximum energy efficiency, with the automatic ventilation module standard
B.Master is ready to use: no installation required
Assistance and adviceOur technicians are always at your disposal.

Technical specifications

Number of compartments: 40 (shelf size 50 x 70 cm)
Total usable surface area: 14 m²
Maximum fresh product flow rate: 80 kg approx.
Average daily productivity: 40/60 kg
External dimensions (WxHxD): 190 x 140 x 90 cm
Empty weight: about 215 kg
Available thermal powers: 3.5 kW – 5.1 kW
Electric fan: 400 mm
Electric fan power: 60 W.
Temperature regulation: electronics with LED screen.
Regulation of moist air evacuation: via wing flap
Power supply: 400 V – 50 Hz
100% stainless steel construction
Electronic temperature control
Thermal powers of 3.5 kW or 5.1 kW

B.Master is the smallest in the range, but its standard equipment is the same as that of all our dryers.

Wi-Fi system as standard
Control, Management and Advanced Functions

The Wi-Fi system allows remotely control all functions of B.MASTER BASE, from any device: smartphone, tablet, pc or mac.

Start, pause or stop your drying process altogether, manage e monitor temperature and humidity, create and rename your programmes customised.

Everything from a simple dedicated application. And if there is no network where you work, no problem: B.MASTER BASE creates its own local Wi-Fi network that you can connect to.

Always connected

Thanks to the Wi-Fi system installed as standard, the dryer acquires the features of “Industry 4.0 Good”, being able to be interconnected to the company network for data exchange.

Create, Store, Track

With the Wi-Fi system, you can log the progress of drying cycles and store them in memory, so that they can also be checked afterwards for production batch tracking purposes.

Additional functions, support and assistance

The Wi-Fi system gives access to the most advanced features of B.MASTER BASE, which cannot be managed from the display alone. A quick guide on what you are displaying and the possibility to create customised recipes more easily. Furthermore, for assistance or advice on specific processes or special requirements, the machine can be managed and programmed directly by Tauro technicians.

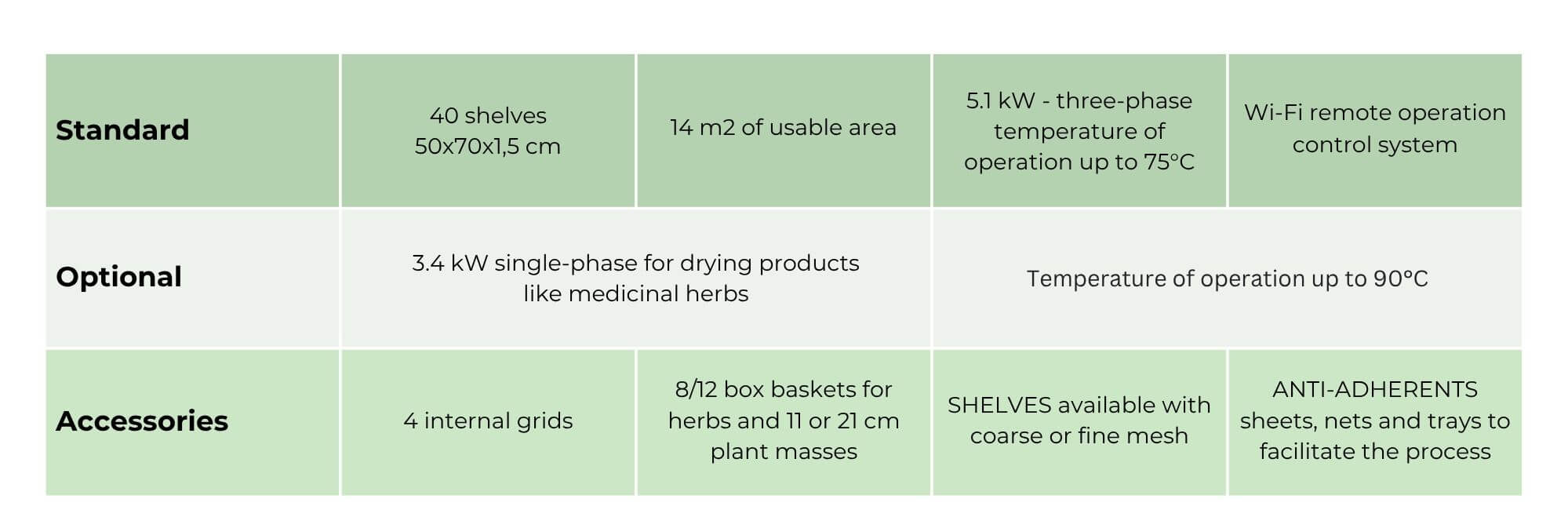

Optional equipment Biosec B.MASTER BASE

Optional

Loading and unloading trolley. Practicality and evolution

Entirely made of stainless steel, made with pivoting wheels and designed for quick and easy insertion of drying shelves.

Certified for food contact.

Your best ally for reducing time loading and unloading.

Available equipment

Drying shelves

Standard configuration of B.MASTER BASE, available in coarse or fine mesh.

40 stainless steel shelves AISI 304, suitable for food contact.
Dimensions 50x70x1.5 cm

Steel and plastic baskets
Designed for drying herbs, leaves, and bulky plant materials.

Stainless steel box baskets AISI 304, suitable for food contact. Interchangeable with standard shelves.

8 baskets 50x70x21 cm or 12 baskets 50x70x11 cm
Box baskets made of plastic material, suitable for contact with foodstuffs. Interchangeable with standard shelves.

24 baskets 30x40x10 cm
Leaf catcher grid kit

Accessories

Non-stick holders

Drysilk.

Non-stick sheets made of PTFE (Teflon®), suitable for food contact.

Indispensable for drying watery foods, purees, leaves and flowers, sugary and thin products that tend to stick to shelves. Washable and reusable.

Dimensions 70×50 cm

Non-stick holders

DrySilk Net.

Nets made of PP (Polypropylene), suitable for food contact, multi-purpose suitable for
sliced products.

They provide non-stickiness and do not obstruct airflow. Two DrySilk Nets can be stacked on top of each other, doubling the capacity of BIOSEC PRO. Washable and reusable.

Dimensions 70×50 cm
