B.Master PLUS TWIN professional food dehydrator

B.Master BASE TWIN professional dehydrator

Biosec B.MASTER PLUS TWIN

Professional drying at the highest level

The dryer that allows drying very watery, large-calibre products or needing high temperatures right from the start.

Standard: two electric heat sources that allow the highest temperature to be reached even at full load, and two ventilation and moist air disposal units for maximum uniformity. The double heating curve ensures that the set temperatures are reached and maintained over the entire drying surface, optimising time and processes. Even the most difficult products can be dried easily and safely.

Download Technical Data

SKU: Biosec-B.Master BASE TWIN-1 Categories: Food dehydrator, Professional dehydrator Brand: Tauro

Description

Maximum efficiency, minimum consumption. Optimal conditions and security from the very first moment

B.MASTER PLUS TWIN is equipped with a 10.2 kW electric heat source as standard. The dryer that allows the drying of very watery, large-calibre products or products requiring high temperatures right from the start.

Standard: two electric heat sources that allow the highest temperature to be reached even at full load. The ventilation and disposal system is always integrated and present in both curves.

Also B.MASTER PLUS TWIN has a modular structure and is therefore expandable with a second drying module for higher productivity.

Customised power

Compact dimensions and maximum robustness thanks to the 100% structure in Italian stainless steel, certified for contact with foodstuffs.
Automated humid air disposal for maximum energy efficiency
B.Master Twin is ready-to-use: no installation required
Support and advice: our technicians are at your disposal

Technical specifications

4 compartments and 72 shelves in total (shelf size 70 x 50 cm)
Total usable surface area: 25 m²
Maximum flow rate: 280 kg approx.
Average daily productivity: 60/100 kg

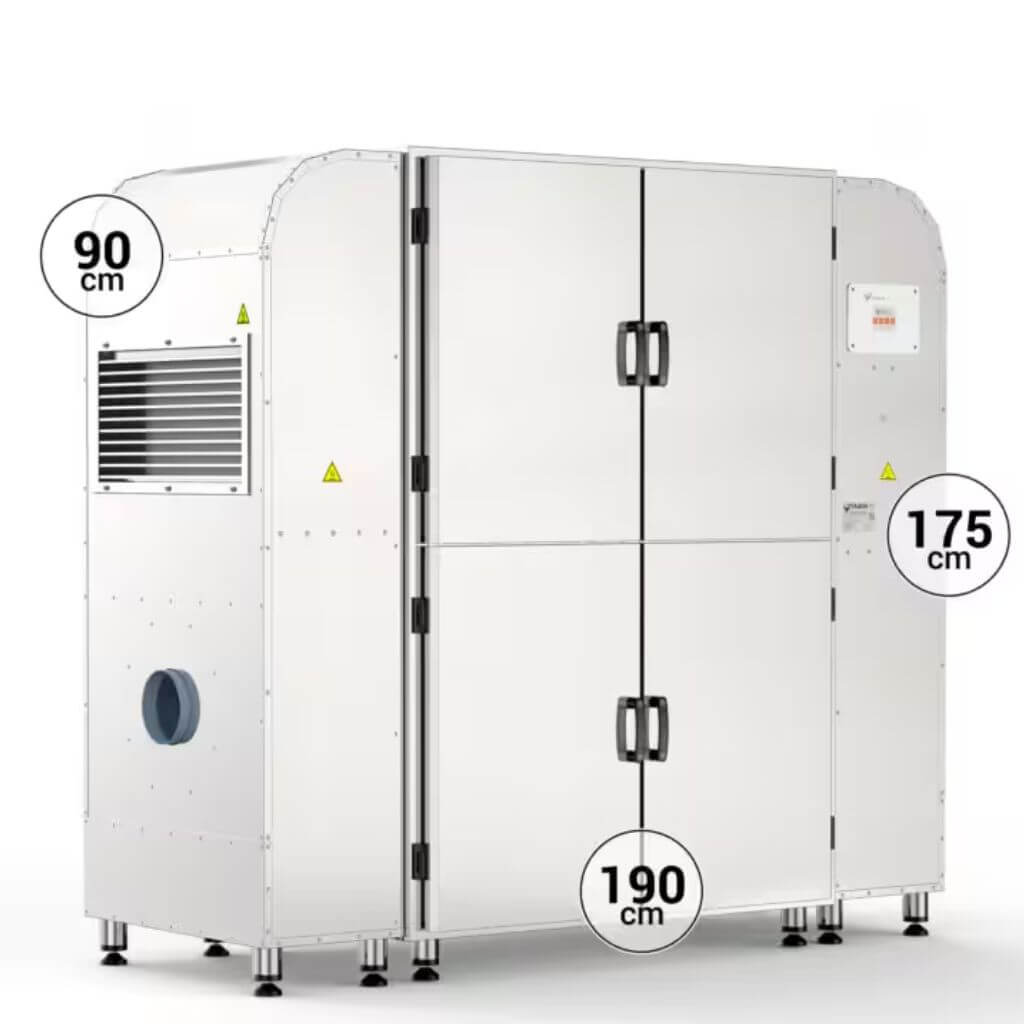

External dimensions (WxHxD): 190 x 175 x 90 cm
Empty weight: 330 kg approx.
Thermal power: 10.2 kW, 15 kW
Fan diameter: 450 mm (there are two)
Electric fan power: 2 X 80 W
Temperature regulation: electronics
Regulation of moist air evacuation: automatic via ducted extractor
Power supply: 400 V – 50 Hz

Machine made of AISI 430 steel, suitable for contact with food. Baskets made of AISI 304 steel, suitable for contact with food.

Wi-Fi system as standard
Control, Management and Advanced Functions

The Wi-Fi system allows remotely control all functions of B.MASTER PLUS TWIN, from any device: smartphone, tablet, PC or mac. Start, pause or stop your drying process altogether, manage e monitor temperature and humidity, create and rename your programmes customised.

Everything from a simple dedicated application. And if there is no network where you work, no problem: B.MASTER PLUS TWIN creates its own local Wi-Fi network that you can connect to.

Always connected

Thanks to the Wi-Fi system installed as standard, the dryer acquires the features of “Industry 4.0 Good”, being able to be interconnected to the company network for data exchange.

Create, Store, Track

With the Wi-Fi system, you can log the progress of drying cycles and store them in memory, so that they can also be checked afterwards for production batch tracking purposes.

Additional functions, support and assistance

The Wi-Fi system gives access to the most advanced features of the B.MASTER PLUS TWIN, which cannot be managed from the display alone. A quick guide on what you are displaying and the possibility to create customised recipes more easily. Furthermore, for assistance or advice on specific processes or special requirements, the machine can be managed and programmed directly by Tauro technicians.

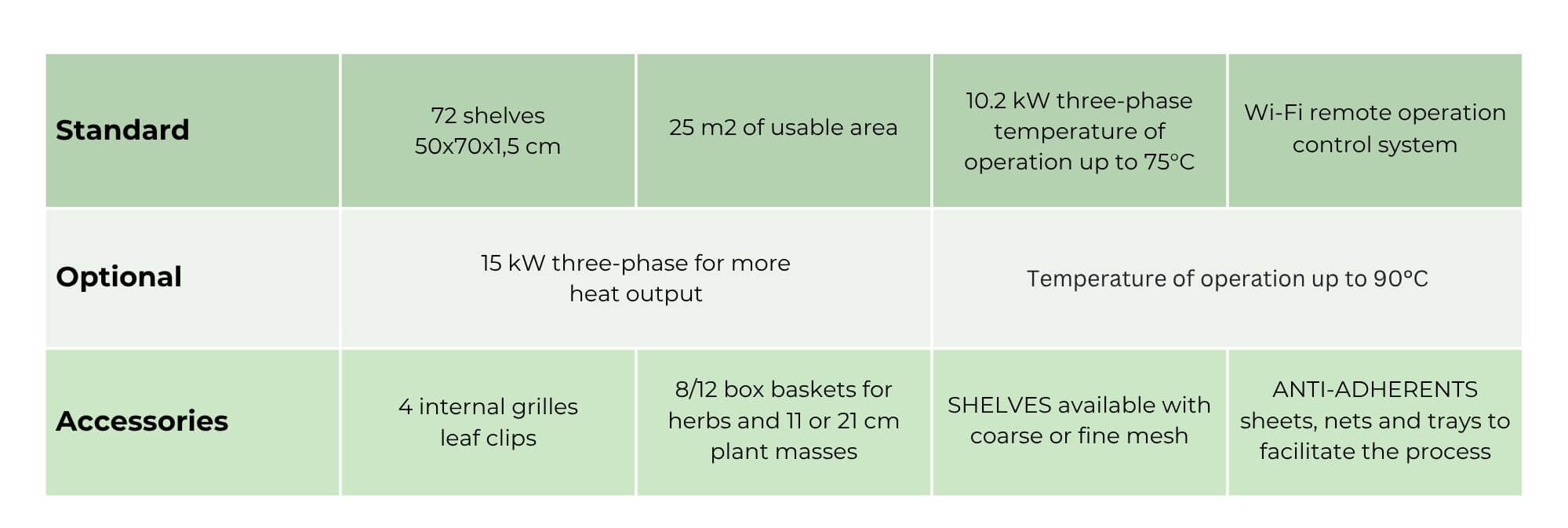

Optional equipment B.Master PLUS TWIN

Optional

Loading and unloading trolley. Practicality and evolution

Entirely made of stainless steel, made with pivoting wheels and designed for quick and easy insertion of drying shelves.

Certified for food contact.

Your best ally for reducing loading and unloading times.

Made in Italy
Steel trolley AISI 430, suitable for food contact
Shelves
in steel AISI 430, suitable for food contact

Available equipment

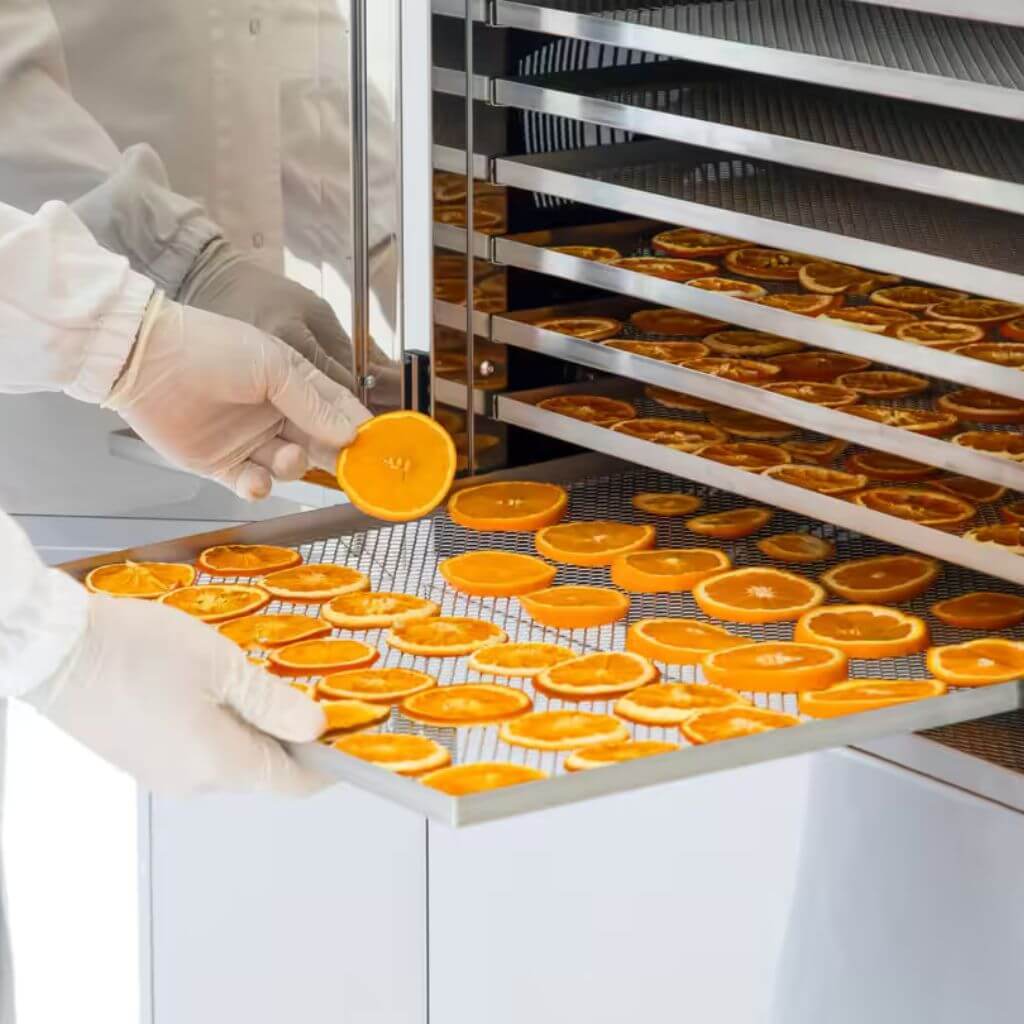

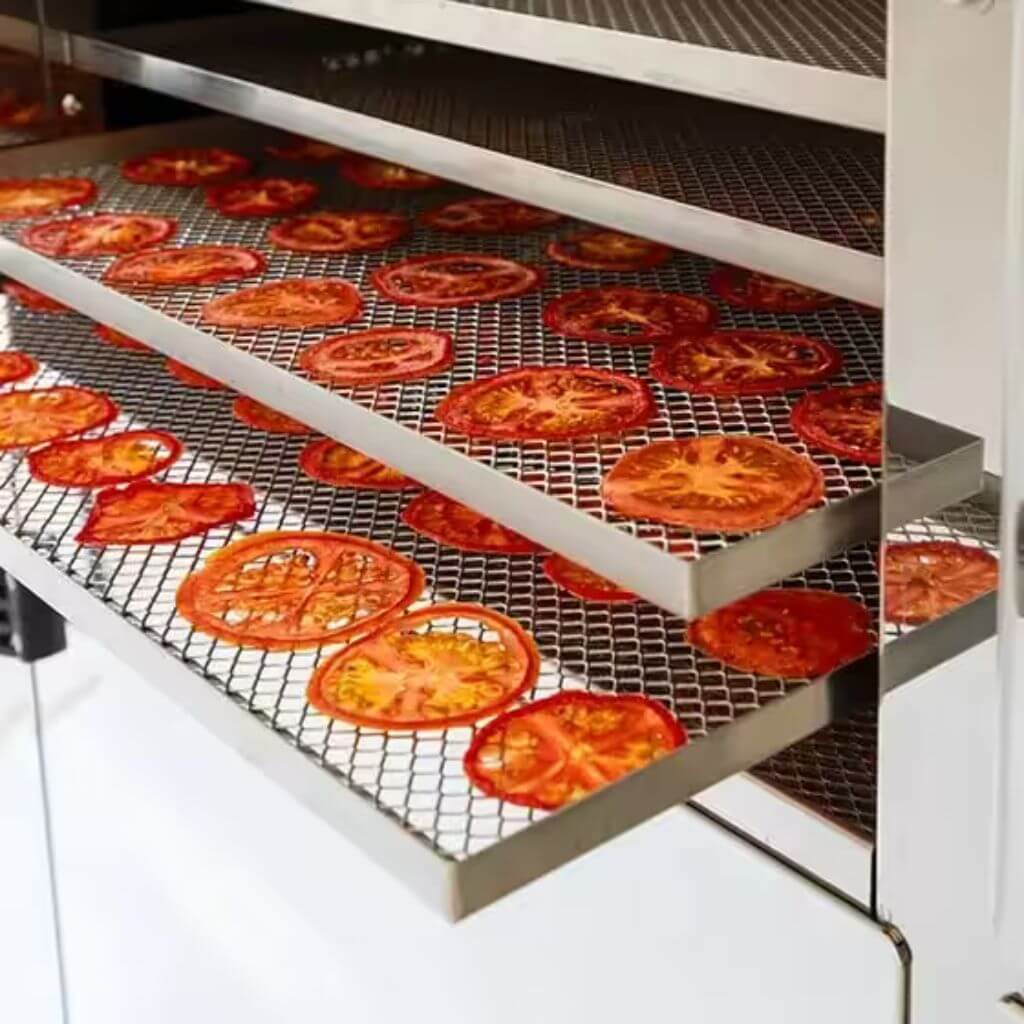

Drying shelves

Standard configuration of B.MASTER BASE, available in coarse or fine mesh.

40 shelves made of AISI 304 stainless steel, suitable for food contact.

Dimensions 50x70x1.5 cm

Steel and plastic baskets

Designed for drying herbs, leaves, and bulky plant materials.

Box baskets made of AISI 304 stainless steel, suitable for food contact. Interchangeable with standard shelves.

12 baskets 50x70x21 cm or 24 baskets 50x70x11 cm

Box baskets made of plastic material, suitable for contact with foodstuffs. Interchangeable with standard shelves.

48 baskets 30x40x10 cm

Accessories

Non-stick holders

Drysilk.

Non-stick sheets made of PTFE (Teflon®), suitable for food contact.

Indispensable for drying watery foods, purees, leaves and flowers, sugary and thin products that tend to stick to shelves. Washable and reusable.

Non-stick holders

DrySilk Net.

Nets made of PP (Polypropylene), suitable for food contact, multi-purpose suitable for sliced products.

They provide non-stickiness and do not obstruct airflow. Two DrySilk Nets can be stacked on top of each other, doubling the capacity of the B.MASTER BASE. Washable and reusable.

Dimensions 70×50 cm
