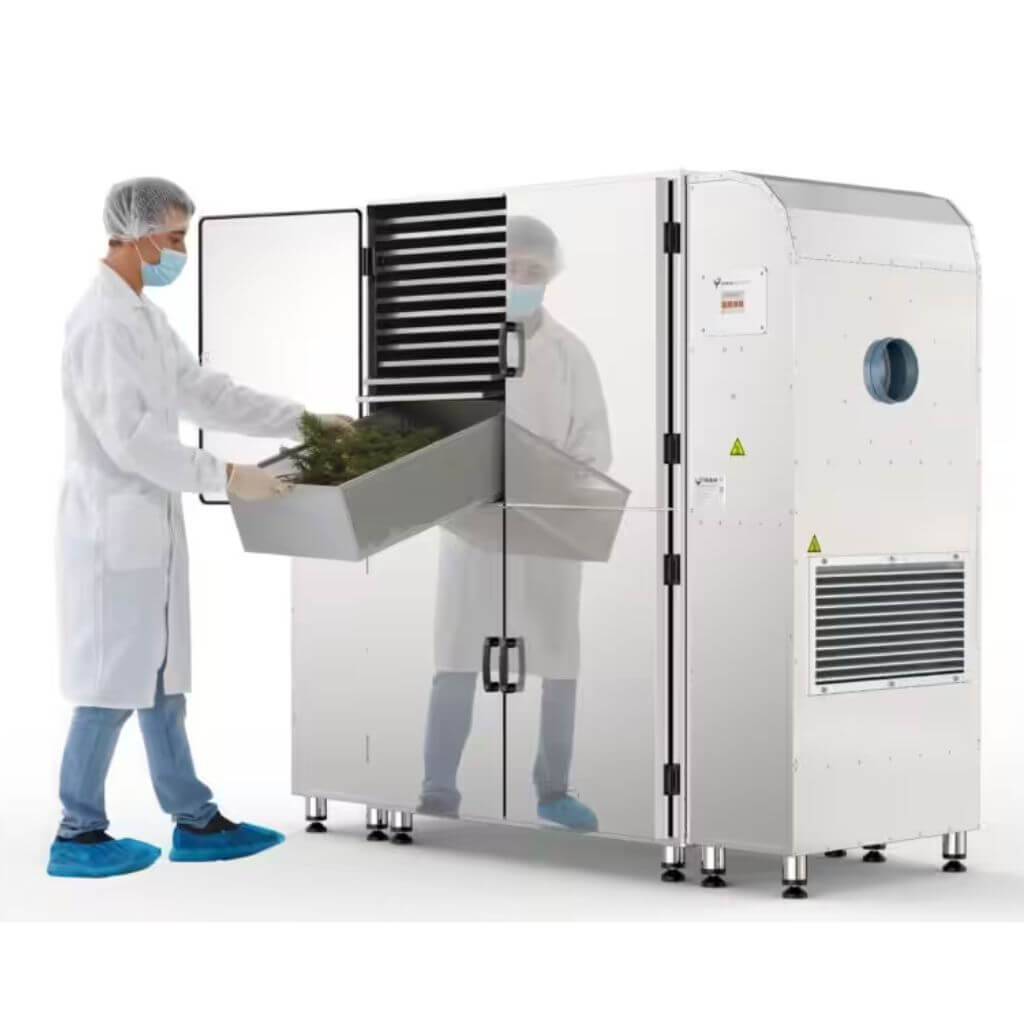

Biosec B.MASTER PLUS

Professional drying at the highest level

Power and delicacy, Versatile, reliable and perfect for any production. B.MASTER PLUS Make added value the strength of your business. With all the technology Tauro has to offer.

For you, it means dry in complete safety thanks to materials certified for contact with food.

Download Technical Data

SKU: Biosec-B.MASTER PLUS Categories: Food dehydrator, Professional dehydrator Brand: Tauro

Description

Maximum efficiency, minimum consumption

B.MASTER PLUS meets the needs of small/medium-sized processing companies.

It comes equipped with a standard 5.1 kW electric heat source that can be replaced by a 3.4 kW heating unit (optional), for the drying of delicate products that require lower temperatures, such as medicinal plants.

The electric heating system can be supplemented or replaced with water heating batteries to utilise alternative energy sources.

Also B.MASTER PLUS is modular structure and therefore expandable with a second drying module for higher productivity.

Up to 25 square metres of available space

Compact dimensions and maximum robustness thanks to the 100% structure in Italian stainless steel, certified for contact with foodstuffs.
Automated moist air disposal for maximum energy efficiency, with the standard automatic ventilation module
B.Master Plus is ready to use: no installation required
Support and advice: our technicians are at your disposal

Technical specifications

Number of compartments: 72 (shelf dimensions 70 x 50 cm)
Total usable surface area: 25 m²
Maximum flow rate: approximately 160 kg
Average daily productivity: 60/100 kg

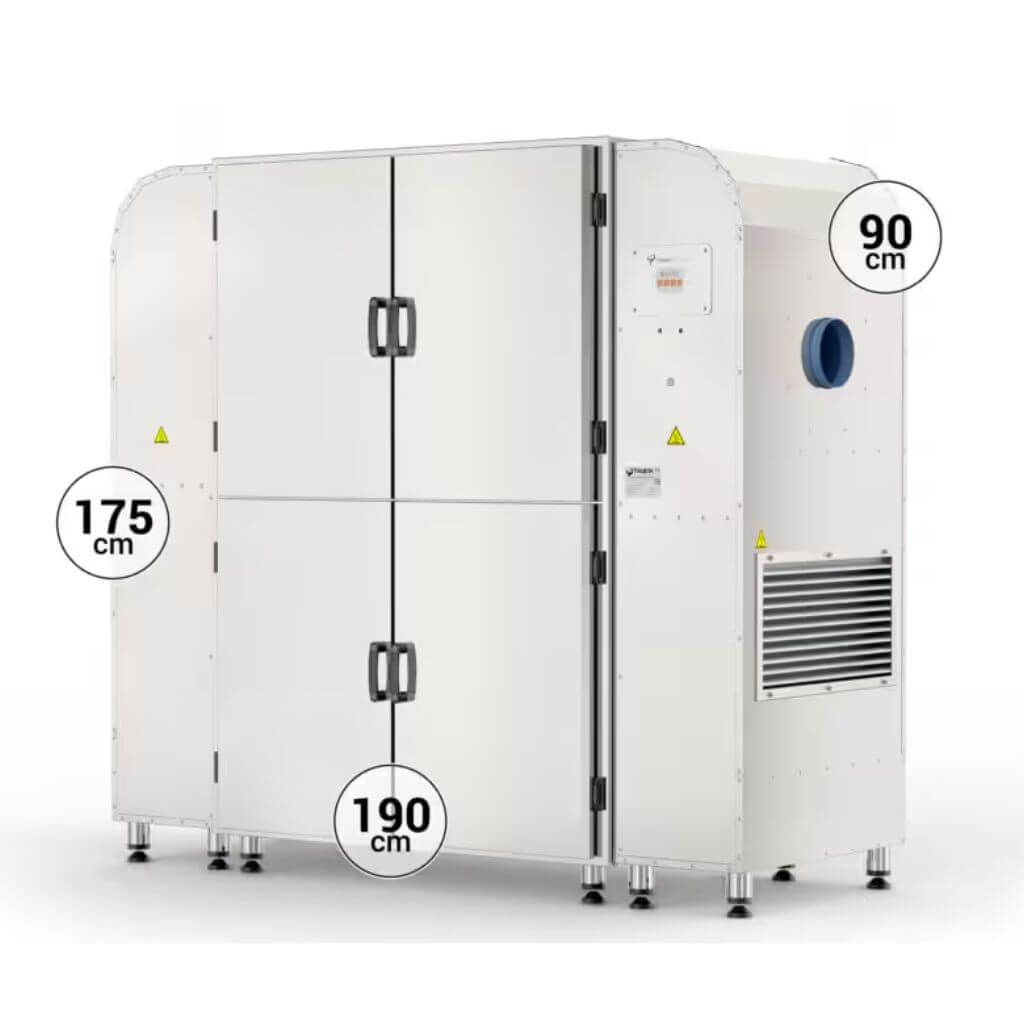

External dimensions (WxHxD): 190 x 175 x 90 cm
Empty weight: approximately 300 kg
Thermal power: 3.4 kW, 5.1 kW, 7.5 kW;
Electric fan: 450 millimetres
Electric fan power: 80 W.
Temperature regulation: electronics with LED screen.
Regulation of moist air evacuation: manual via wing flap or automatic via channelled extractor
Power supply: 400 V – 50 Hz
Machine made of AISI 430 steel, suitable for contact with food. Baskets made of AISI 304 steel, suitable for contact with food.
Electronic temperature control
Heat output: 3.4 kW, 5.1 kW, 7.5 kW
Air exchange control system

B.MASTER PLUS is the highest-performance model in the range, with all our dryers equipped as standard.

Wi-Fi system as standard
Control, Management and Advanced Functions

The Wi-Fi system allows remotely control all functions of B.MASTER PLUS, from any device: smartphone, tablet, pc or mac.

Start, pause or stop your drying process altogether, manage e monitor temperature and humidity, create and rename your programmes customised.

Everything from a simple dedicated application. And if there is no network where you work, no problem: B.MASTER PLUS creates its own local Wi-Fi network that you can connect to.

Always connected

Thanks to the Wi-Fi system installed as standard, the dryer acquires the features of “Industry 4.0 Good”, being able to be interconnected to the company network for data exchange.

Create, Store, Track

With the Wi-Fi system, you can log the progress of drying cycles and store them in memory, so that they can also be checked afterwards for production batch tracking purposes.

Additional functions, support and assistance

The Wi-Fi system gives access to the most advanced features of B.MASTER PLUS, which cannot be managed from the display alone. A quick guide on what you are displaying and the possibility to create customised recipes more easily. Furthermore, for assistance or advice on specific processes or special requirements, the machine can be managed and programmed directly by Tauro technicians.

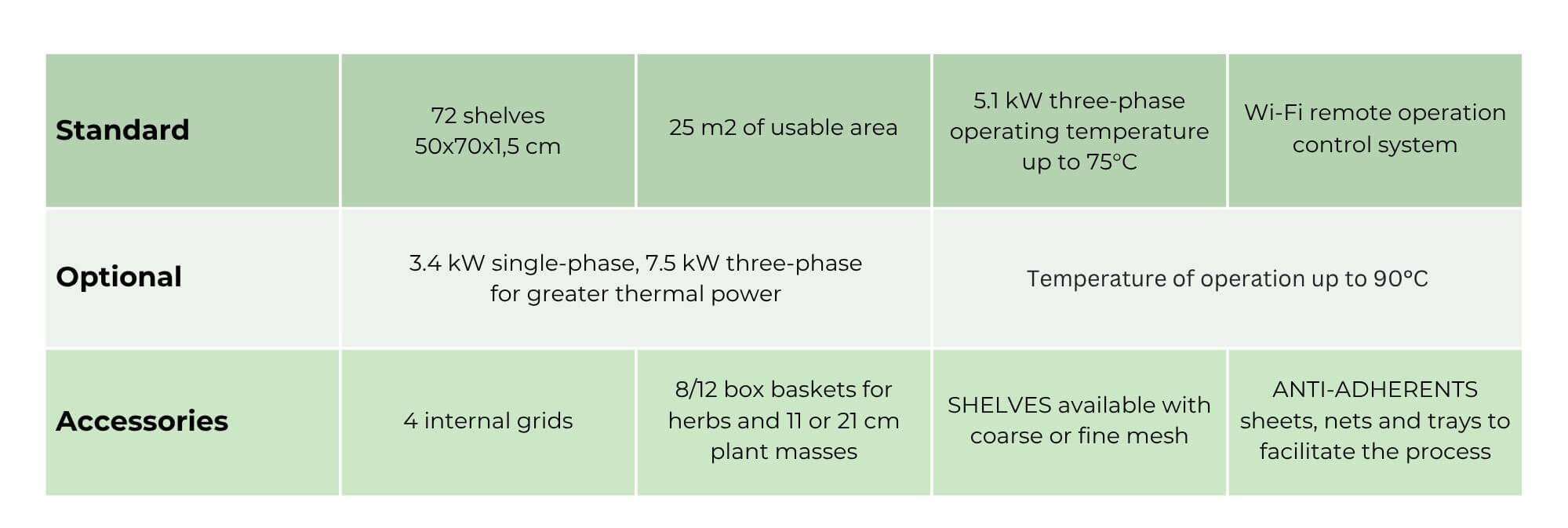

Additional equipment B.MASTER PLUS

Optional

Loading and unloading trolley. Practicality and evolution

Entirely made of stainless steel, made with pivoting wheels and designed for quick and easy insertion of drying shelves.

Certified for food contact.

Your best ally for reducing loading and unloading times.

Made in Italy
Steel trolley AISI 430, suitable for food contact
Shelves
in steel AISI 430, suitable for food contact

Available equipment

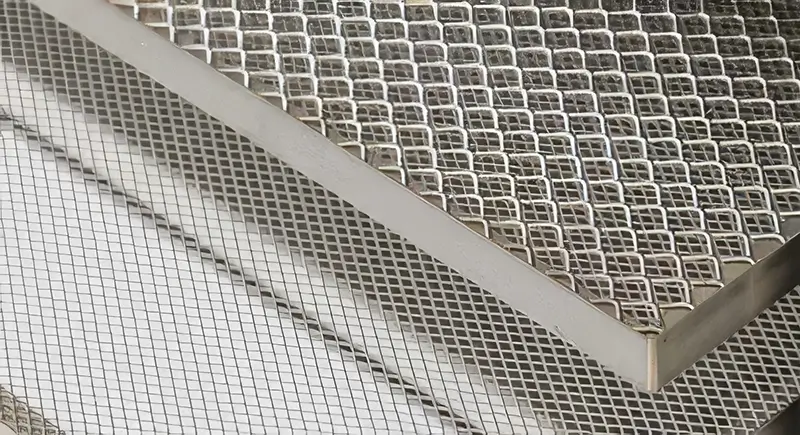

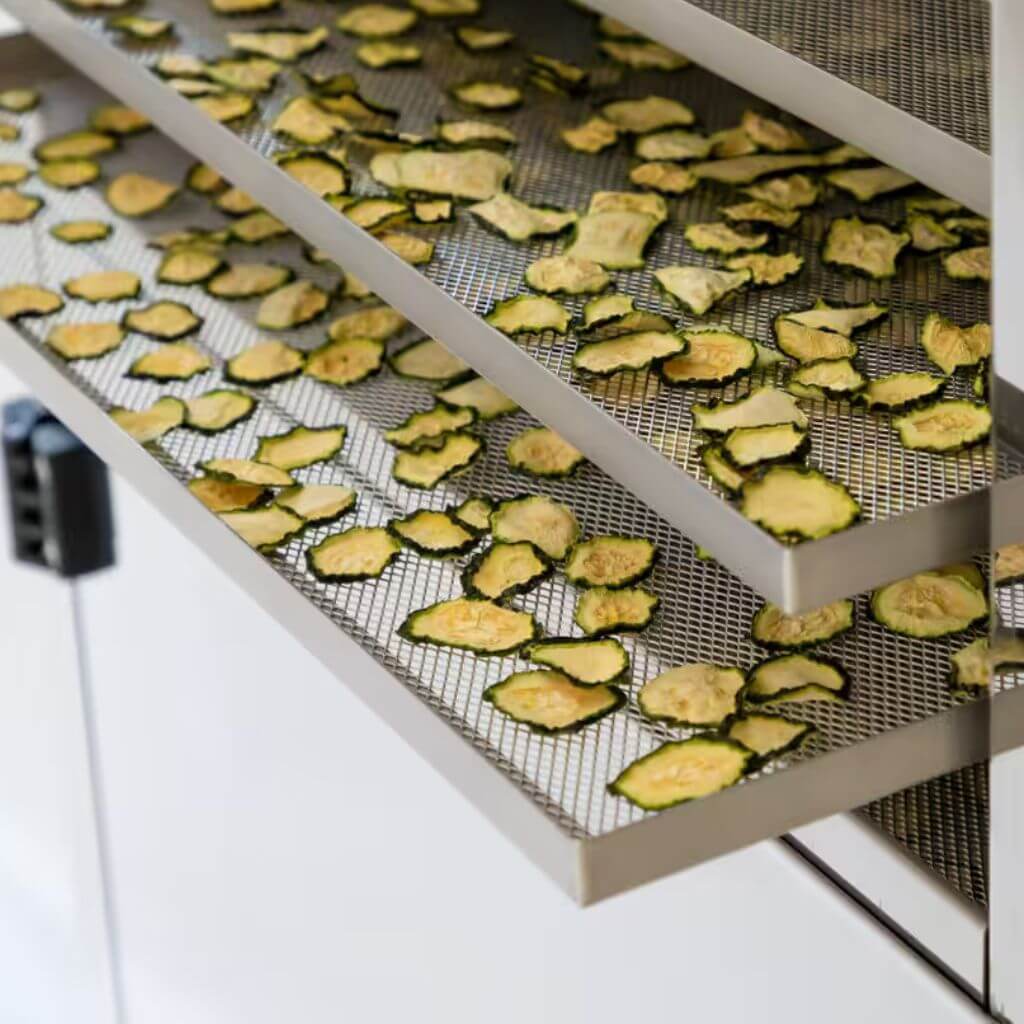

Drying shelves

Standard configuration of B.MASTER PLUS, available in coarse or fine mesh.

72 shelves made of AISI 304 stainless steel, suitable for food contact.

Dimensions 50x70x1.5 cm

Steel and plastic baskets

Designed for drying herbs, leaves, and bulky plant materials.

Box baskets made of AISI 304 stainless steel, suitable for food contact. Interchangeable with standard shelves.

12 baskets 50x70x21 cm or 24 baskets 50x70x11 cm

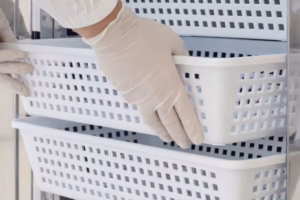

Box baskets made of plastic material, suitable for contact with foodstuffs. Interchangeable with standard shelves.

48 baskets 30x40x10 cm

Accessories

Non-stick holders

Drysilk.

Non-stick sheets made of PTFE (Teflon®), suitable for food contact.

Indispensable for drying watery foods, purees, leaves and flowers, sugary and thin products that tend to stick to shelves. Washable and reusable.

Non-stick holders

DrySilk Net.

Nets made of PP (Polypropylene), suitable for food contact, multi-purpose suitable for sliced products.

They provide non-stickiness and do not obstruct airflow. Two DrySilk Nets can be stacked on top of each other, doubling the capacity of the B.MASTER BASE. Washable and reusable.

Dimensions 70×50 cm
